BodiTrak2 SmartBed

THE FULLY AUTOMATED BED MANAGEMENT SYSTEM

BodiTrak® – The world’s only intelligent surface

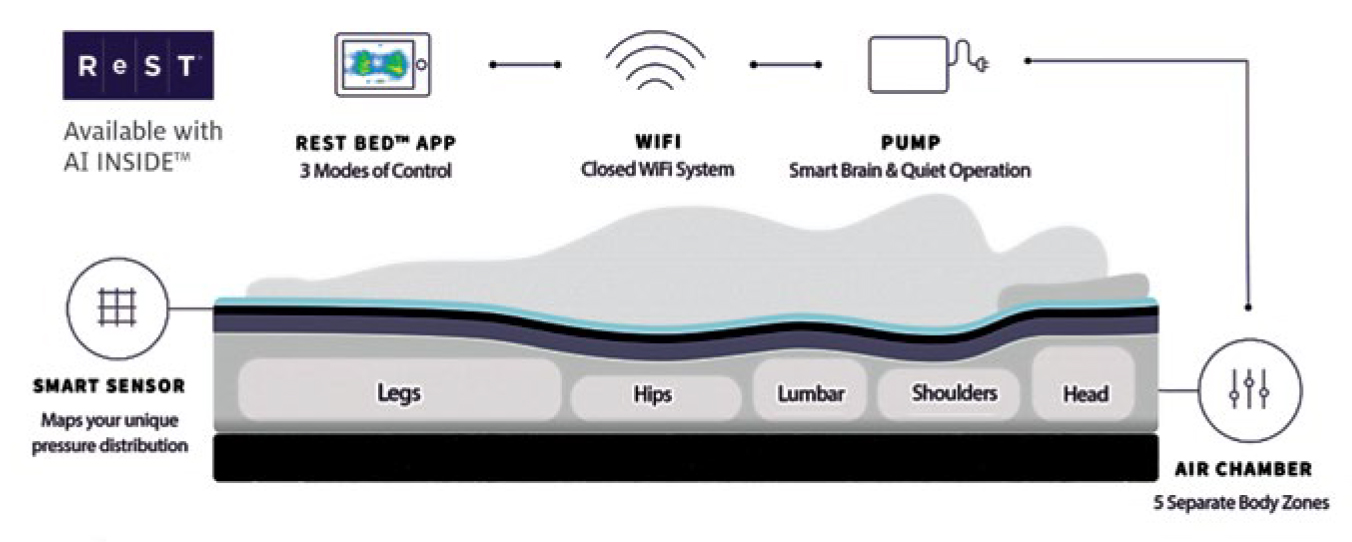

TRUE INTELLIGENT BED SURFACE THAT SENSES AND RESPONDS

  • Senses changes in patient position and automatically responds by redistributing pressure to reduce pressure peaks

  • “Smart AI Inside” controller for bed management and integration into the care environment

  • Patented stretchable and pressure sensitive fabric that monitors the immersion characteristics of the support surface

  • Easy-to-understand pressure display and customisable user interface

  • Wide range of performance and display options

  • HIPAA and HL7 compliant for integration into the EHR

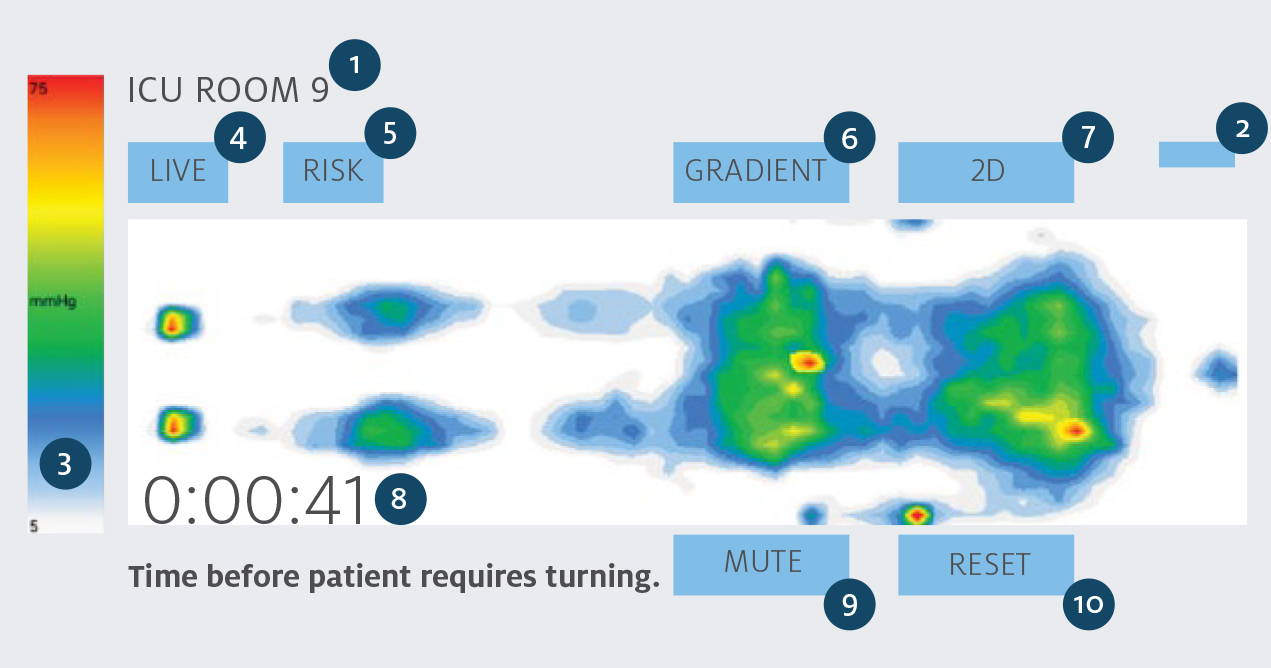

Using the BodiTrak App

1 Room number
This is a protection mechanism that identifies which data port the system is currently using. All system data is recorded at the data port and transmitted to the tablet via a wireless signal.

2 Settings
Here you enter patient-specific data and set the alarm volume and sensitivity. You also select the data port, adjust the exit alarm settings and log out of the system here.

3 Pressure scale
Customisable default values are preset. Warmer colours such as red, orange and yellow represent higher pressure loads and cooler colours such as white, blue and green represent lower pressure loads.

4 Live pressure measurement view
Provides real-time, continuous pressure monitoring that allows you to quickly identify areas of high risk and ensure proper relief and optimised repositioning.

5 Risk
Helps caregivers quickly understand where the patient’s skin may be at greatest risk for pressure injury.

6 Gradient
Indicates potential tissue trauma due to high shear forces.

7 2D or 3D
Here you select the view. 2D is the default setting.

8 Turning Timer
Records the time until the patient needs to be turned. When the patient needs to be turned, an audible alarm sounds and/or a text message is sent.

9 Mute
Silences the alarm.

10 Reset
resets the time until the next recording.

Smart Fabric strain sensors with alternating knitted conductive and non-conductive structure, with an intermediate conductive layer.

Specification mattress cover

  • Sizes 91 x 203 cm | 91 x 213 cm
  • Detection area varies depending on model
  • Sensor cells 1″ square
  • Weight capacity 2.5 to 250 kg.
  • Adjustable alarms and settings Rotary timer, alarm volume,
  • Exit, Risk and Gradient
  • Smart Fabric Sensor material Lycra stretch
  • Latex-free Yes
  • Connectivity Wireless, USB compatible
  • HIPAA and HL7 compliant Yes
  • CE and ISO 13485 certified Yes

Technical Data

Specification Description
Sizes 91 x 203 cm | 91 x 213 cm | 106 x 203 cm | 122 x 213 cm
Measuring range varies depending on model
Sensor cells 6,4cm2
Load capacity 2.5 – approx. 250 kg
Alarms and settings Rotation timer, alarm volume, exit, risk and gradient
Intelligent material stretchable Lycra
Interfaces W-LAN, USB
Latex-free yes
HIPPA and HL7 compliant yes
FDA, CE and ISO 13485 certified yes
